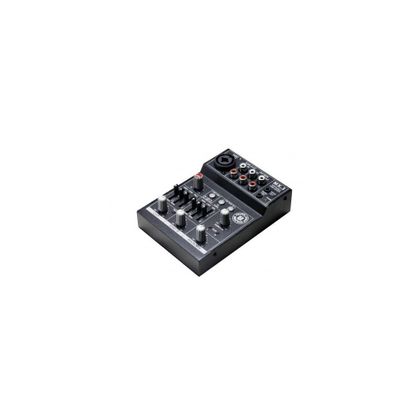

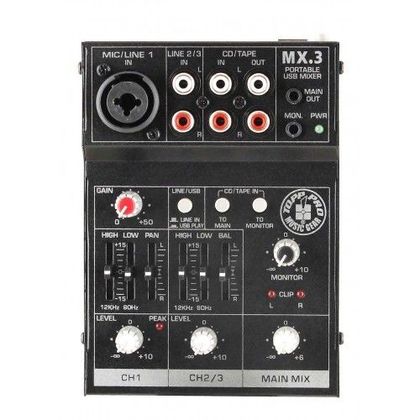

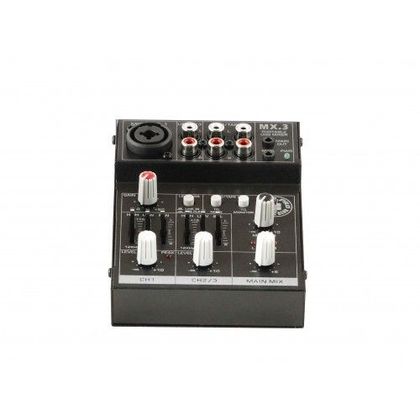

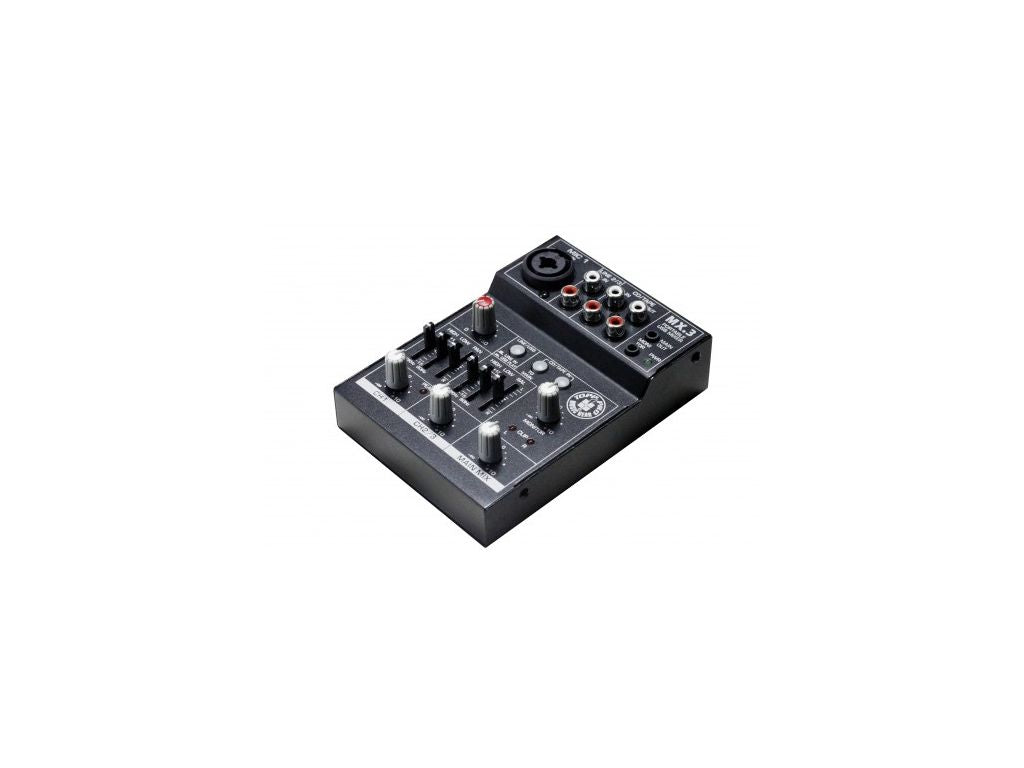

TOPP PRO TP MX3 Mixer 3 canali con USB
1 Precision mono input MIC/Line with combojack, Stereo Input
Monitor Output
RCA Tape inputs/outputs
2-band EQ
USB I/O
Model: MX.3
Frequency Response
Mic Input to any Output: 10 Hz to 40 kHz(0, -1dB)
(Gain @ 0 dB, Rated output level): 10 Hz to 400 kHz(0, -3dB)
Distortion (THD&N)
Mic Input to MAIN Output(Gain @ 0 dB, Rated output level @ 20 Hz-20 kHz bandwidth):0.01% (A-weighted)
MIC EIN (Equivalent Input Noise)
Input: Channel INPUT MIC (Rs = 150 Ohm Gain @ Max.,20 Hz-20 kHz bandwidth): -118dBu (A-weighted)
CMRR
Mic in to main out(Gain @ Max.,@ 1 kHz) 70dB: 70dB
Input Gain (20 Hz-20 kHz)
Mono Channel: MIC: 0 to 48dB, LINE: -35 to +15dB
Stereo Channel: --
Attenuation (Crosstalk) (20 Hz-20 kHz): Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter, Gain @ unity.
Main Mix knob/fader @ -8 -79dBu (A-weighted)
Channel Level knob/fader @ -8 -79dBu (A-weighted)
Rated Output Level
Main, Aux, Control Room output (all knob/fader @ 0 dBu,1 kHz): 0dBu
Maximum Output Level
Main, Aux, Control Room output (all knob/fader@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%): +17dBu
Maximum Voltage Gain (EQ and PAN/BAL knob@ 0 dB, Other all knob orfader @ max, DFX mute, 1 kHz, Rs=600 Ohm)
Mono Channel MIC INPUT MAIN OUT (3.5mm jack stereo): 69dBu
Mono Channel MIC INPUT Monitor (3.5mm jack stereo): 78dBu
Mono Channel MIC INPUT TAPE OUT (RCA): 69dBu
Mono Channel LINE INPUT MAIN OUT (3.5mm jack stereo): 53dBu
Stereo Channel LINE INPUT MAIN OUT (3.5mm jack stereo): 16dBu
TAPE INPUT MAIN OUT (3.5mm jack stereo): 6dBu
TAPE INPUT Monitor (3.5mm jack stereo): 9dBu
Main mix Noise (20 Hz-20 kHz bandwidth)
MAIN OUT (all knob/fader @ 0 dBu, 22 Hz-22 kHz Filter,Gain @ unity)
Main Mix knob/fader @ -8 ,Channel Level knob/fader @ -8: -120dBu (A-weighted)
Main Mix knob/fader @ 0dB, Channel Level knob/fader @ -8: -100Bu (A-weighted)
Main Mix knob/fader @ 0dB, Channel Level knob/fader @ 0Db: -98dBu (A-weighted)
Equalization
(Mono channels): Stereo Channels
High +/-15 dB @12 kHz High +/-15 dB @12 kHz
Low +/-15 dB @80 Hz Low +/-15 dB @80 Hz
PEAK Indicator
Channel 1 Channel 2
VU Meters
Main Left and Right (1-segment) Clip +15dBu
Impedance
Microphone Input: 2.6k Ohms
Line Input: 10k Ohms
Tape Input: 10k Ohms
Main Outputs: 120 Ohms
Phones Output: 120 Ohms
Tape Output: 1K Ohms
USB SECTION
USB Interface: USB 2.0 full speed compliant
ADC & DAC: 16-Bit Delta-Sigma,44.1kHz Sampling Rates
Operating System: Windows 2000,XP or higher, Mac OS 9.0.4 or higher, 10.Xor higher
Phantom power
Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND, 2=HOT, 3=COLD) +20V
Power supply

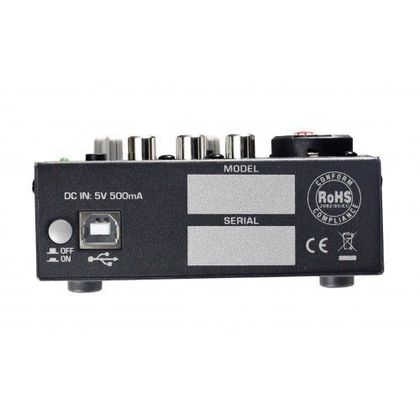

Adaptor: DC5V, 500mA
USB Connection: DC5V, 500mA
Power Consumption: 2.5W
Physical
Dimension (L*W*H): 98 mm*136 mm*34 mm
Weight: 0.48Kg (1.1 lbs)
